Product Features:

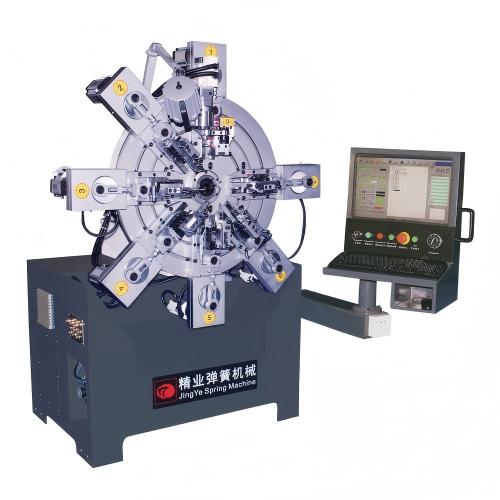

1. Ten servo motors independently control eight workstations, enabling rapid core rotation, wire feeding, and machine adjustment (over 50% faster than cam machines and over 10% faster than similar products).

2. The direct connection between the servo motor and the precision planetary gear reducer ensures high precision, long life, and high stability, while overcoming the low stability of other transmission methods.

3. The tool holder adopts parallel double-guide rail sliders and features high-speed lateral movement, making machine adjustment more flexible.

4. Unique eccentric shaft double-end support ensures more stable and rigid production of large-diameter springs.

5. High-precision wire feeding box gear manufacturing process maintains wire feeding accuracy over a long period.

6. The arm station rotates 360 degrees, providing powerful wire forming capabilities.

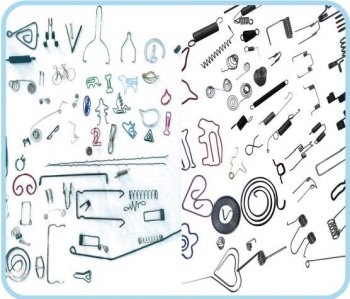

7. Wide application range, suitable for producing various irregular springs, paper clips, tension springs, compression springs, torsion springs, flat springs, coil springs, etc.

Note: A rotary arm or other attachment can be added optionally.
